Hoppers for Stone Crushers and Cement/Powder Plants

Product Details

Introductory Paragraph

Wefabricate hoppers for demanding environments like stone crushing plants, cement production, and bulk powder handling, the focus shifts from just fine powder flow to extreme durability, abrasion resistance, and handling high-volume, heavy-duty material.

image_SS Engineering Udaipur

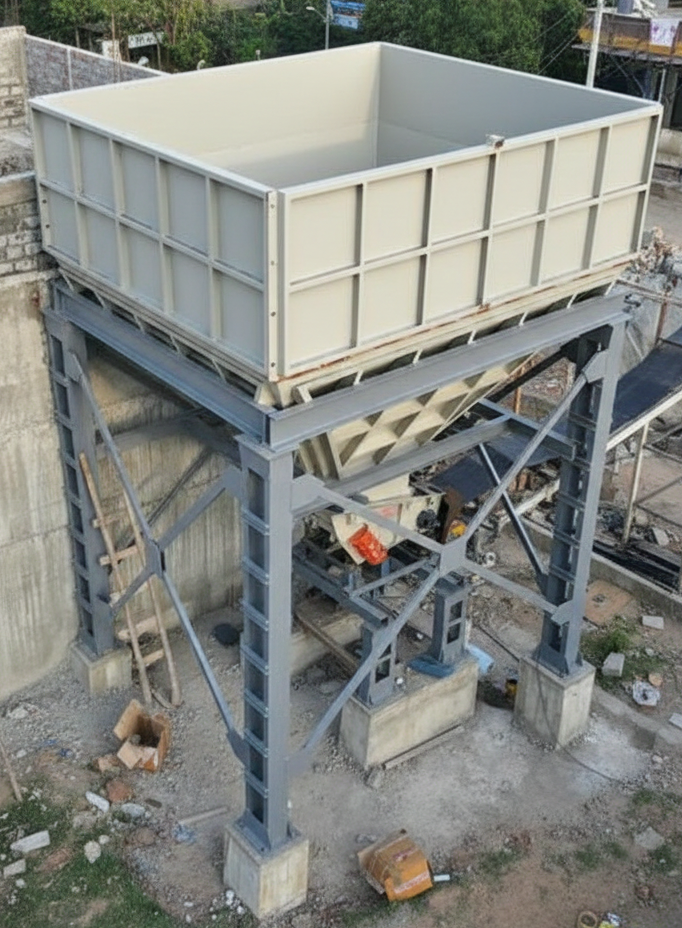

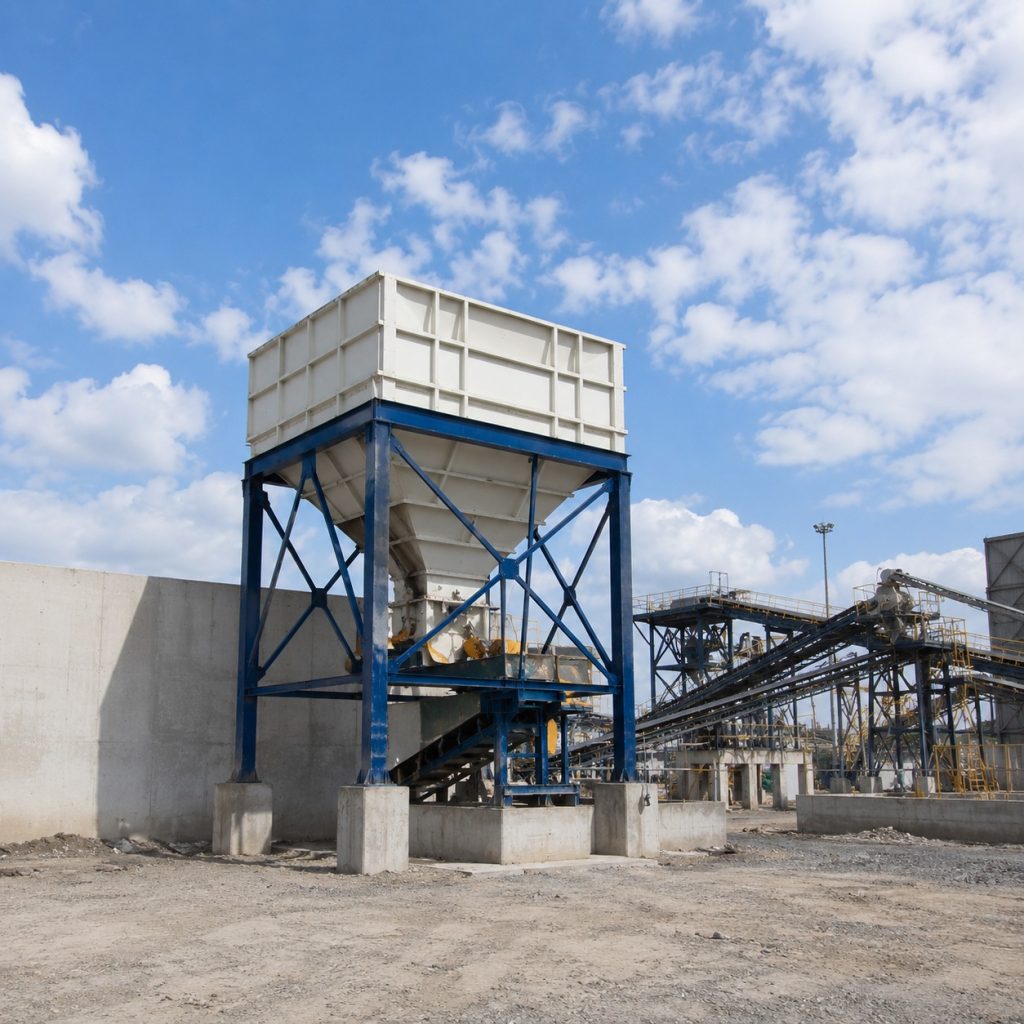

Stone Crusher Plant Hoppers (Grizzly Hoppers / Dump Hoppers)

These are the most robust hoppers, designed for handling large, heavy, and highly abrasive aggregates (rocks, granite, limestone).

  • Key Function: They serve as the receiving bin where dump trucks or loaders feed raw material before it enters the primary crusher (like a Jaw Crusher). They must absorb significant impact.
  • Fabrication Focus:
    • Material: Built using Extra Heavy-Duty grade Mild Steel (MS) or High-Manganese Steel plates (thick gauge, 8 mm to 16 ), often with extensive external stiffening and reinforcement to withstand impact.
    • Lining: Often lined with replaceable Abrasion-Resistant (AR) steel plates, such as Hardox or high-chrome iron, to protect the main structural steel from wear caused by heavy, sharp rock.
    • Feeder Integration: Typically fabricated to include a Grizzly section (heavy steel bars or grating) at the top to scalp (remove) oversized boulders and a Vibratory Grizzly Feeder at the bottom to regulate the material flow rate into the crusher.
  • Design Consideration: The throat opening is sized to be at least twice (or up to four times) the diameter of the largest anticipated rock to prevent bridging and jamming.

Cement and Powder Plant Hoppers

These handle high volumes of finely ground, often cohesive materials like cement clinker, gypsum, and various pulverized additives.

  • Key Function:Act as storage, surge, or batching vessels (weigh hoppers) for precise proportioning of ingredients.
  • Fabrication Focus:
    • Material: Standard Mild Steel (MS) is common, but surfaces must be smooth, and joints must be sealed against dust. Stainless Steel may be used for sensitive additives or where moisture is a concern.
    • Geometry: Precision fabrication of the conical section is vital to ensure the correct mass flow (as steep as 60 degree or more) to prevent powder hang-up, rat-holing, and degradation of flow properties.
    • Flow Aids: Integrated features are fabricated directly into the cone: aeration pad ports for air injection, and strong anchor points for bin activators or vibrators to ensure complete and smooth discharge.

  • Automation: They frequently incorporate mounting brackets for Load Cells (Weighing Sensors) and specialized Rotary Valves or Slide Gates for automated, high-accuracy batching control.

The fabrication process for these industrial hoppers emphasizes structural rigidity and the proper integration of flow-enhancing technology tailored to the specific material being handled.
