Wire Saw Machine

Wire Saw Machine

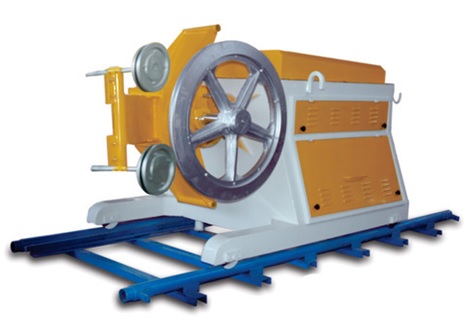

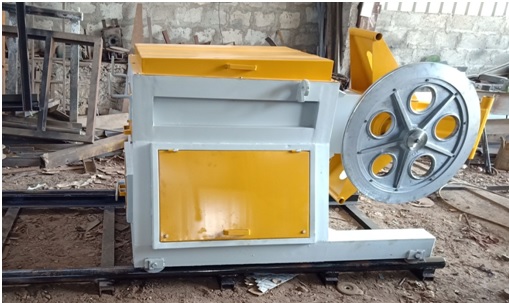

S.S Wire Saw Machine ,Creates a perfectly smooth face of the block and is capable of cutting both vertical and horizontal and close to ground level so that you get an even bottom. It consist of a three phase main electric motor that can swivel 360° for a complete coverage of cuts i.e. bottom cut, vertical cut and angular cut by controlling the rotation of diamond wire flywheel . A continuous electric drive unit powered by a D.C./A.C. electric motor allows the machine to advance along its rack forward & backward for cutting with variable speeds. In Addition to a completely user-friendly design, the machine has weight of 1800 Kg (Approx). This Provides better stability and accuracy in quarrying.

Control Panel Cable 10 Meter
Railing Track 3 Meter : 1 No & 2 Meters : 2 No
Connection B/w Panel & Machine Plug Socket System Machine to Panel
Electrical Contactors Used 110 Amp – 110 Amp – 80 Amp
Transport Dimensions (L) 2600 mm , (W) 1300 mm ,(H) 1250 mm
Total Weight 1900 Kg (Approx)
Main Motor Flywheel Size Rail line
20 HP 600 MM 20 FT
40 HP 790 MM 20 FT
60 HP 790 MM 20 FT
